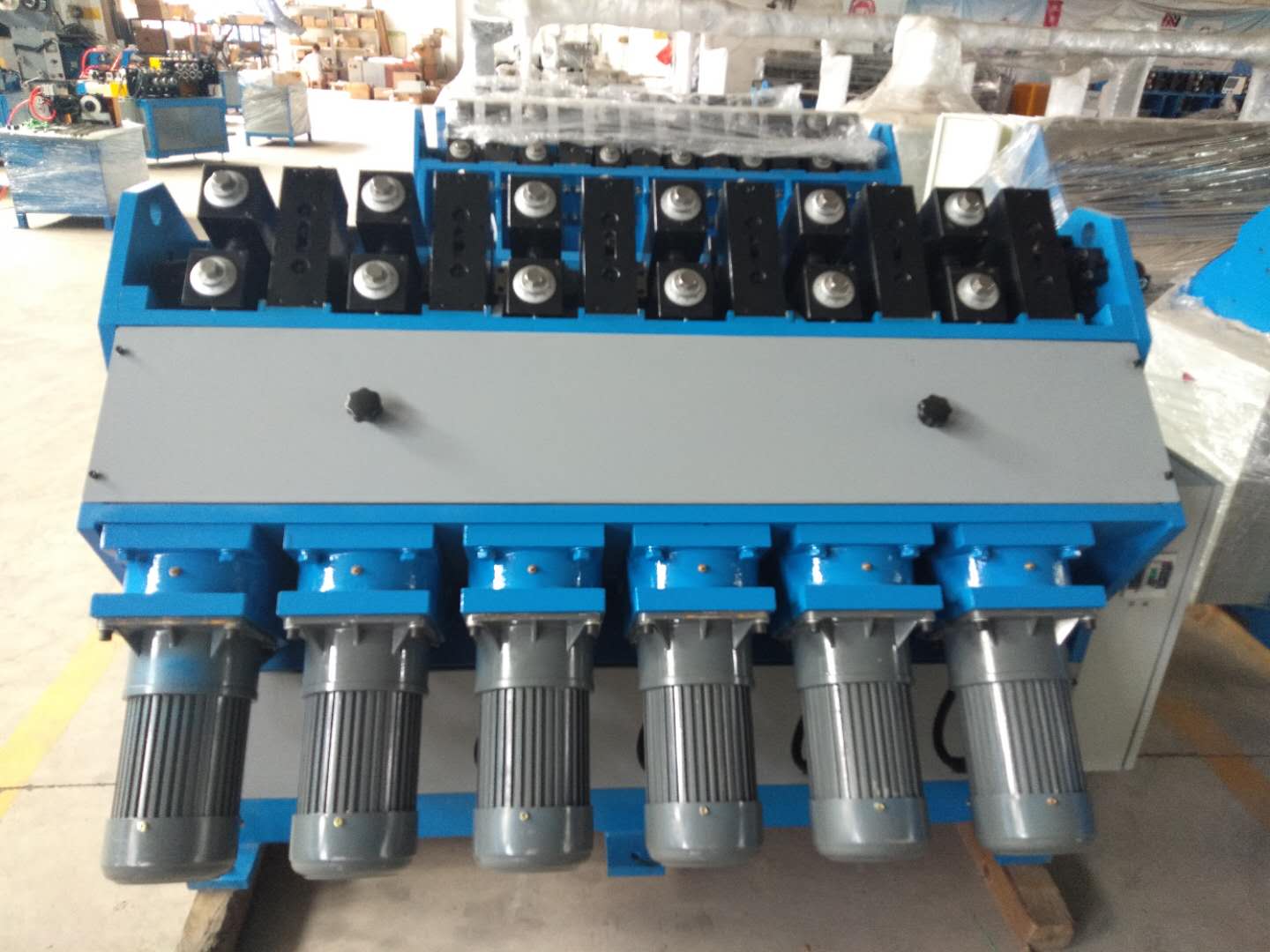

Improved version of pipe shrinking machine

This machine is mainly aimed at the shortage of "universal" pipe shrinking machine single shaft drive, easy to damage the motor, adding a pair of bridge double axle gear, in the middle of the double universal shaft connected motor and roll shaft, so that the machine parallel drive, increase the torque distance, thereby reducing the motor and roll shaft direct stress, play a protective role.
A; Shrinkable pipe diameter range: 1.5--18(mm)
B; Shrinkable pipe length: 30-3000 (mm)
C; Machine structure classification: integral casting, split combination
D; Group number; Spot 12 groups, support to order
E; Die material: alloy, high speed steel, die steel
F; Shrinkage speed: from 10-20 (m/min)

G; Volume product (length * width * height) (mm) 1750*1500*1300(mm)
